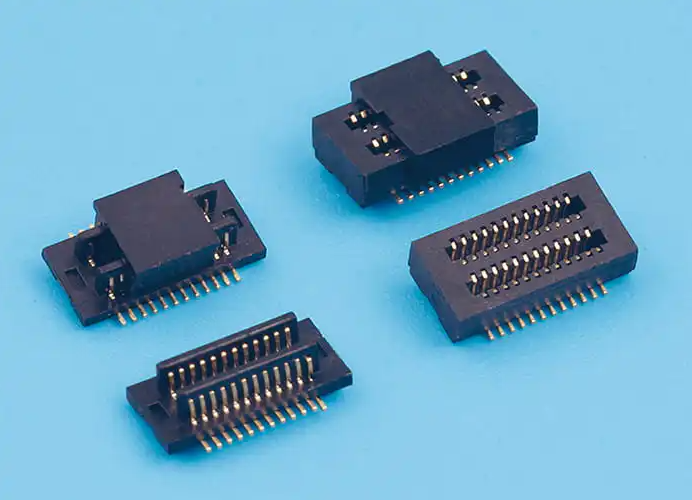

Board to Board Connector(https://www.wendaelectronics.com/product/boardtoboard-btb-connector/)

1、CKT: 2*5Pin to 2*40Pin

2、Current rating: 0.5A AC/DC

3、Voltage rating(max): 100V， AC/DC

4、Working Temperature: -25C~ +85C,

(Including temperature rise in applying electrical current)

5、Contact resistance: value s20mΩ

After environmental testing s40mΩ

6、Insulation resistance: 21000MΩ

7、Withstand voltage: 200VAC(rms)

8、Applicable PCB board thickness: 1.6mm to 2.0mm
